Rayleigh and Brillouin scattering

Rayleigh and Brillouin scattering are the two optical scattering effects that are used in SLAM-DAST sensor system to implement a distributed sensing of strain, temperature and vibrations alogn an optical sensing fiber cable.

Brillouin scattering

Brillouin scattering is the physical effect used for sensing  temperature and deformation. Brillouin interaction is illustrated in a simplified way in Figure 1: the Electro-Magnetic (EM) field of the lightwave injected in the fibre (pump light) has both electrical field (E) and magnetic field (B) components.

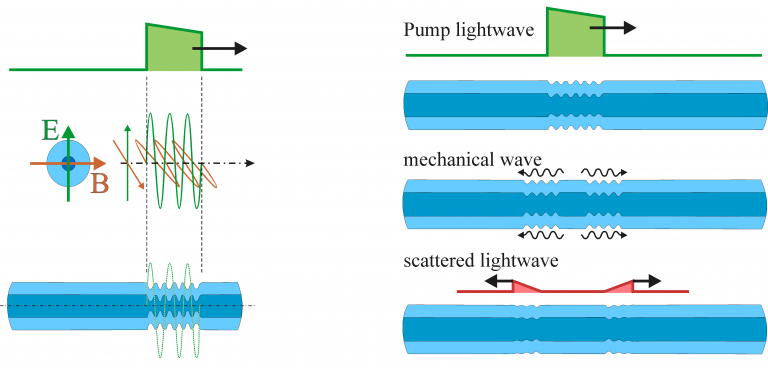

Figure 1: In Brillouin effect the light-waves (photons) interact with vibrational states of the fiber (phonons) changing the photon energy and changing the light wavelength (‘colour’)

When the lightwave (pump wave) propagates in a physical medium such as the glass of the fibre, the electrical field (E)  interacts with the material by changing the material density through the electro-striction effect. The striction pattern then generates vibration waves (phonons), this at the expenses of the energy of the pump light that gets its energy reduced. The effect also implies that a vibration wave (phonon) which is present in the material interacts with the EM field through energy exchange. The mechanical deformation pattern interacting with the pulsed light (phonons) can survive only for a limited amount of time (a lifetime of the nanosecond order). This energy exchange between vibrations (phonons) and the optical pump EM field (photons) gives rise to generation of photons (EM waves) with different energies (frequencies), i.e. light-waves with wavelength (‘colour’) shifted with respect to that of the pump light. This is called the Brillouin effect.

The most likely Brillouin scattering process is the “Stokes” interaction in which the pump light looses energy in order to create the mechanical waves (phonons), and the scattered light thus results red-shifted (lower optical frequencies) with respect to the pump. A mirror process, in which a pump photon gets energy from a pre-existing mechanical wave (excited phonon) increasing the photon energy (frequency blue-shift) is as well possible although with lower probability, and it is named “anti-Stokes” Brillouin interaction.

In order to efficiently generate Brillouin scattering, the spectral purity combined with the intensity of the pump light must create a regular and strong pattern of electrostriction. This translates into some constraints on the pump lightwave in terms of maximum linewidth and minimum power threshold.

The Brillouin effect arises from a excitation/dis-excitation process in which some EM energy is temporarily stored in a shoert-lifetime mechanical form, and it can turn back into EM energy spontaneously, as well as a stimulated effect, i.e. consequentially to a “resonance” stimulus, in a conceptually similar way to other physical excitation/dis-excitation processes such as fluorescence and light amplification [1].

The characteristics of Brillouin scattering depend essentially on fiber glass properties (e.g. refractive index, density etc.). Since these are strongly influenced by optical fiber temperature and deformation, it is then straightforward that by measuring the fiber Brillouin scattering characteristics it is possible to reliably estimate the optical fiber  temperature and deformation conditions.

[1] EP Ippen, RH Stolen, Stimulated Brillouin scattering in optical fibers, Applied Physics Letters, 21[5], p. 539, (1989).


Rayleigh scattering

The Rayleigh scattering is a light scattering effect occurring in all optical materials illuminated by a lightwave, and is due to small variation in material density (refraction index). The scattering happens also in atmosphere, and is the reason why we see the sky with a blue colour (as an example, in small planets or satellites that have no atmosphere the ‘sky’ is black).

In particular, in optical fibers, the Rayleigh scattering originates from the small density variation in the glass within the fiber core. Rayleigh scattering is inherently isotropic, that is, it scatters the light uniformly along all directions; then, in optical fibers a small portion of the scattering is captured in the backward propagating direction thanks to the total internal reflection inside the fiber core. This scattered light then travels backwards , and constitutes as an ‘echo’ of the light propagation along the fiber. The Rayleigh scattered light has the same wavelength of the incident lightwave, and therefore is called an elastic scattering.
The scattered light phase depends on the optical path undergone by the light, and therefore represents a sort of optical ‘signature’ of the fiber deformations or strain.
In distributed acoustic sensing [2], a lightwave pulse is sent along the fiber and measure the phase of Rayleigh backscattered lightwave to reconstruct the vibrations in the environment surrounding the fiber itself. This technique is called phase sensitive OTDR and is described in the next section.

[2] L. Palmieri and L. Schenato, “Distributed optical fiber sensing based on Rayleigh scattering”,
The Open Optics Journal, vol. 9 n. 7, pp. 104-127 (2013).
